Wings
sold out

Spec Wing

60.00

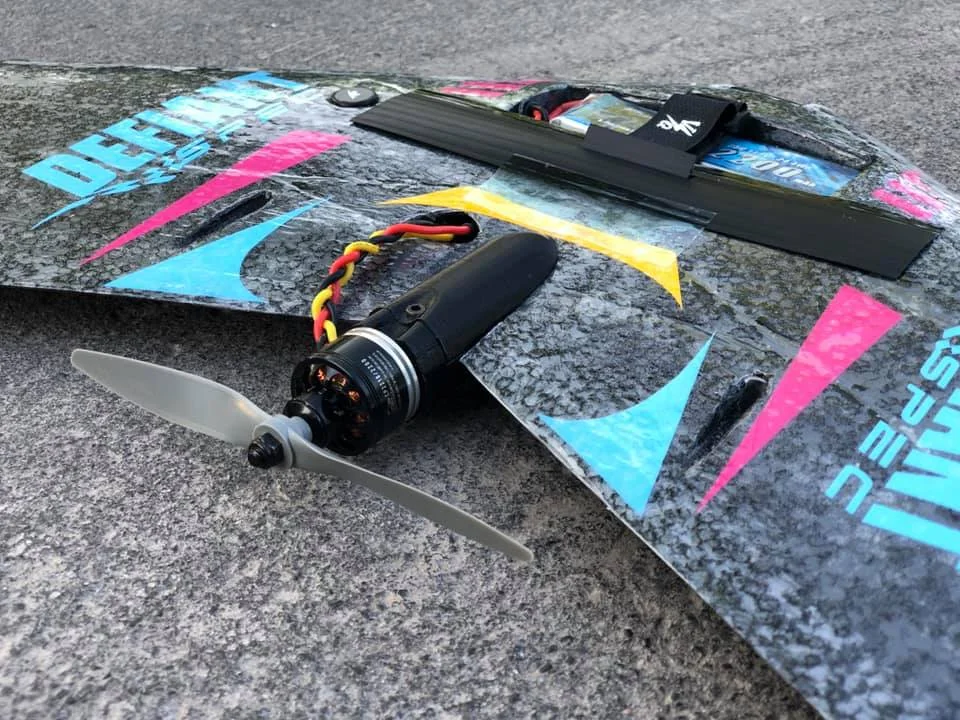

The Spec Wing is fully endorsed by the FPVWRA to compete in the Spec Class. This means that the wing’s design meets the Spec Class standards. Our version of the spec wing has some distinctive design features that allow it to be extremely maneuverable and very efficient. The cores are cut from very light and durable 1.3# white EPP foam to keep this wing as light as possible. The unique 3D printed motor mount allows mounting the motor without a cross-mount to keep the cross-section as small as possible while allowing cooling to the motor. The motor and prop are set behind a complete airfoil to gain higher prop efficiency. The design has been endorsed but it is the builder’s responsibility to ensure that the finished wing meets specification.

Kit Includes:

  • Foam Wing Cores

  • Fiberglass Spars

  • Custom Balsa Elevons

  • Coroplast Winglets

  • ABS Battery Bay Floor

  • Control Linkage Hardware

  • 3D Printed Motor Mount

  • 3 mil Laminate

  • Decal set

Recommended Configuration:

  • FPVWRA approved Spec Motors

    • T-Motor AT2310 2200kv Motor

    • Cobra CP-2210 2200kv Motor

    • Turnigy D2826-6 2200kv Motor

  • 40A ESC

  • (2) 12 gr Metal Gear Servos

  • 4 Channel Rx

  • 3s 2200 mah battery

Downloads:
